Atari Battlezone Restoration 3

on

We’re making good progress with this Battlezone cabaret. Do check out parts 1 and 2 here if you haven’t done so already.

So I thought it time to make a start on the grubby control panel. You’ll recall the state this was in when I acquired the cab:

28425954414_67f5eeb4eb_z

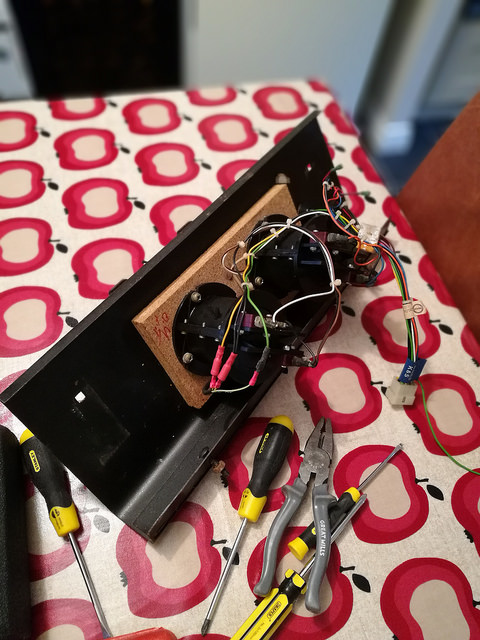

Not pretty at all. Luckily, I managed to secure a reproduction panel, which was made using the same silk-screening process as the original above. This was made by arcade enthusiast Troy, from who I sourced a replacement control panel for my Missile Command – his work is always excellent. Once that had arrived from the USA, I got to work removing the hardware from my old panel ready for a clean:

30011423634_bbe249a714_z

I’ve not worked on a Battlezone before, so it was really a case of diving in armed with a screwdriver, and keeping a note of what went where. Work logically, and keep screws together as sets, and take lots of pictures. Removing both sticks involved eight screws which held everything together:

30555236581_f6d8e80c26_z

Here’s one of the sticks stripped down:

30011367064_2b34962538_z

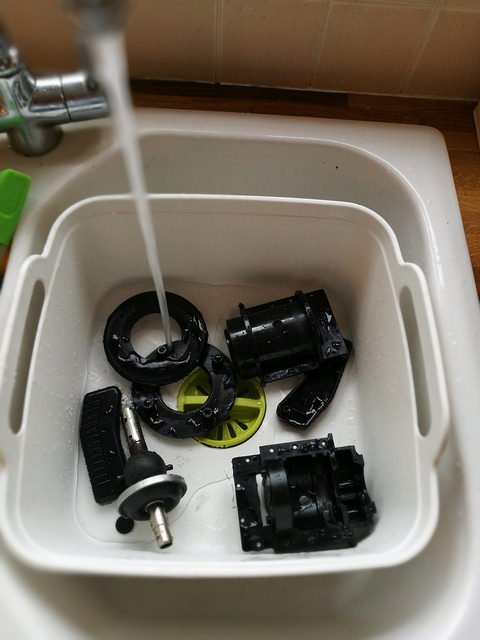

Pretty simple things these. The long metal piece there houses a large rubber bellow, and the bottom acts as a rocker that activates wired switches, for up and down movements on each stick. Loads of muck came out as you can see. I dropped everything into hot soapy water and gave it all a good scrub:

30555121381_e3f579baba_z

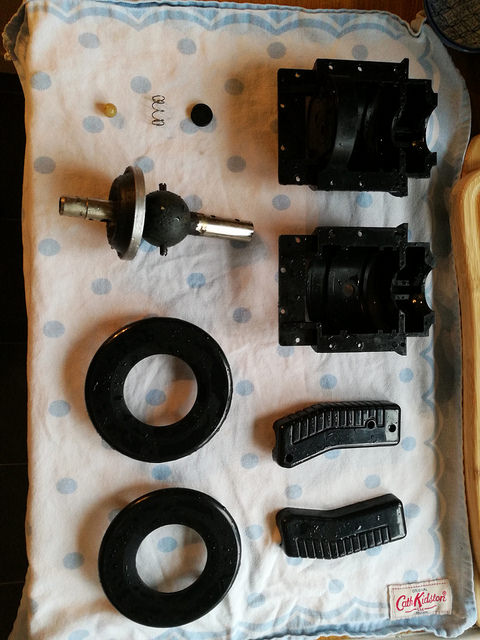

Repeated for the other stick, and laid everything out to dry:

30526105592_4e0806f35a_z

Here’s our screws. I’m going to give those a clean up, and I’ll give the heads of the black ones resprayed with Hammerite metal paint, as they’ve rusted quite badly – these are used to hold the stick plastics together, so I don’t want any rust to show up when we rebuild them onto our new panel:

30343303210_9128263f0f_z

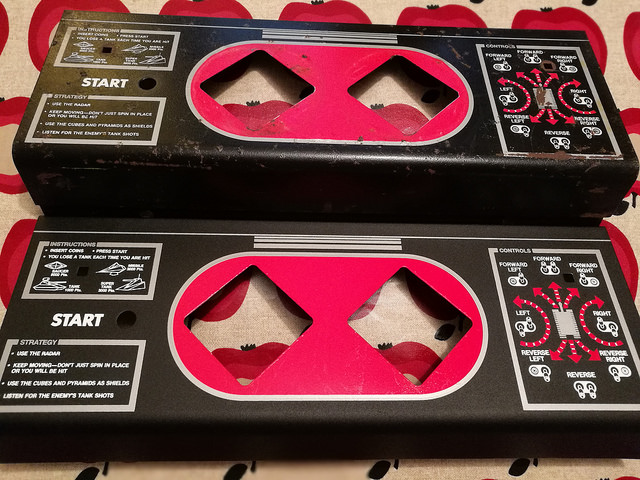

Here are the two panels side by side:

30011117934_b961b82142_z

Out with the old and in with the new! The good news is I offered up the old one for free on a forum here in the UK, and it was snapped up within 20 minutes. Always good to have nothing going to waste. I’m glad someone is able make use of the original panel.

The wiring loom was very dirty, so I dropped that into a bowl of soapy water for a soak:

30009253953_fffa4b613b_z

Then popped back out to the garage for a bit of rust removal. Screws first:

30126492053_0e078eff3a_z

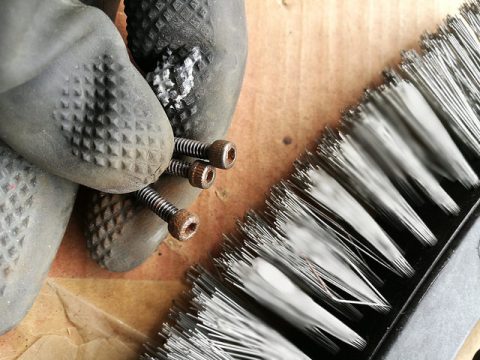

Couple of minutes later:

30129791864_0b8d0733b9_z

I’ll give those heads a lick of paint when they’re back in. Then onto the stick shafts. The chrome was pretty rusty on the exposed sections as you can see below, and I didn’t want this rust to show when the grips were put back on. I found using my Dremel tool with a wire brush attachment made quick work of removing it completely.

Before:

30129848394_15fa71e16b_z

After:

30761938735_8456fce15d_z

So, everything controls related was put back in the linen cupboard to dry out, ready for rebuilding:

30461326500_311262f0f4_z

Back to the monitor. I did say that I had this fixed back in part 1, or so I thought. But for some reason it went screwy again when I went to test it in the Asteroids cab when I was working on a problem there one night, and I had this collapse on the picture once more:

29443802184_7bff1f4512_z

After some digging around on the web, I decided the likely culprits were these bottle cap transistors at the base of the monitor frame:

31930112710_1b0c472487_z

So after sourcing replacements on eBay, I got to work getting them swapped out. This involves spreading the base of the new ones with thermal paste, and installing them with a custom plastic plate to eliminate any potential conductivity with the monitor chassis. Mucky job, but simple enough:

32157288622_7a6500855e_z

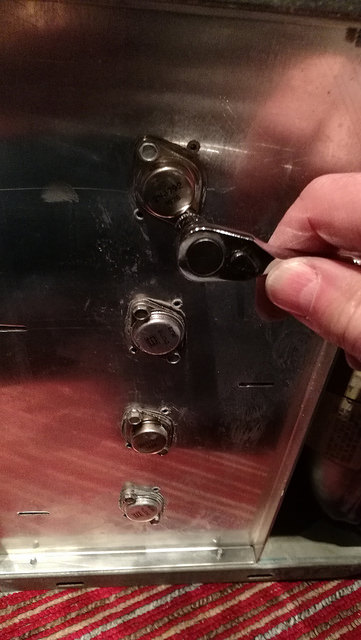

Why I did it on the carpet, I have no idea; thankfully I was done and cleaned up before the lady of the house spotted what I was doing. Chances were only one of these was faulty, but I thought it best to replace the lot given the minor costs involved. Anyway, everything went fine, and here’s the last replacement being bolted back in place:

32267617216_9e6c4a952c_z

Hooked back up to the Asteroids cab and bingo:

32187310741_e46dc40d08_z

We have a full screen picture and everything is nice and bright and stable. Sure enough, one or more of the old bottle caps had a short. Touch wood that’s it for the monitor now.

Back out to the garage. You’ll recall in part 2 that I resprayed the front laminate sheet from this cab, and got a good result. Time to get it back onto the front of the cab. So after masking off the marquee and speaker grille, I applied a good coat of Gorilla Glue:

30645236732_85d3c406cc_z

Carefully placed the laminate back on top, then weighed everything down to ensure a good fix:

30725164256_595b99328b_z

That’s a heavy tent, toolbox, paint can and several clamps. It wasn’t elegant, but got the job done. Left that for a couple of hours for the glue to fully dry out.

OK that’s your lot for now. Part 4 is now well under way and will be coming up soon – stay tuned!

Thanks for reading this week.

Tony
