Atari Tempest Restoration 3

So we were making good progress on this Tempest cabaret machine. As you’ve already read in the first two parts, we’d stripped down the control panel and gave it a clean. The spinner had been stripped down and needed a deep clean and refurbishment. I sourced some new bushes to fix the grinding noise that was present – this happens when the old plastic bushes wear out.

Here they are prior to install:

9B2F5FC3-FAF6-4A9F-B6B5-F79D1A87A1B9-23948-00000288254969C5

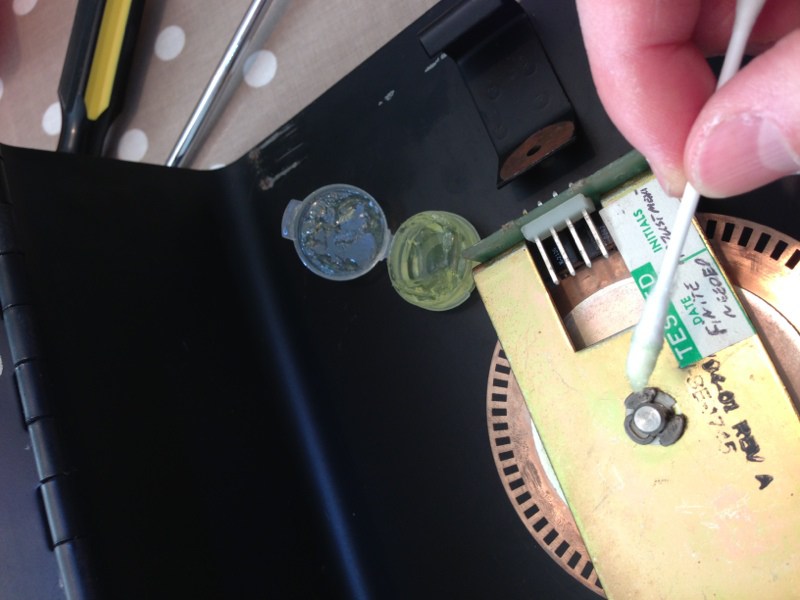

The original manual mentions “Nyogel” lube to keep the spinner working nice and smooth – again, a quick hunt around, and I sourced a small amount of the stuff. Applied it as per the manual using a cotton bud:

ECE1FA71-7B65-4A62-8BB4-3F22B22F683F-23948-000002882AF24306

Rebuilt the spinner with the cleaned up parts (came up nice!), making sure the optical wheel is between the sensors and rebolted to the control panel:

AD256C7C-86D0-4327-827A-7D5C0B739B90-23948-000002884DA8E350

Added the buttons and wiring:

CB7616FD-3736-44D1-8DFB-2BF5C701AD8E-23948-0000028830664B55

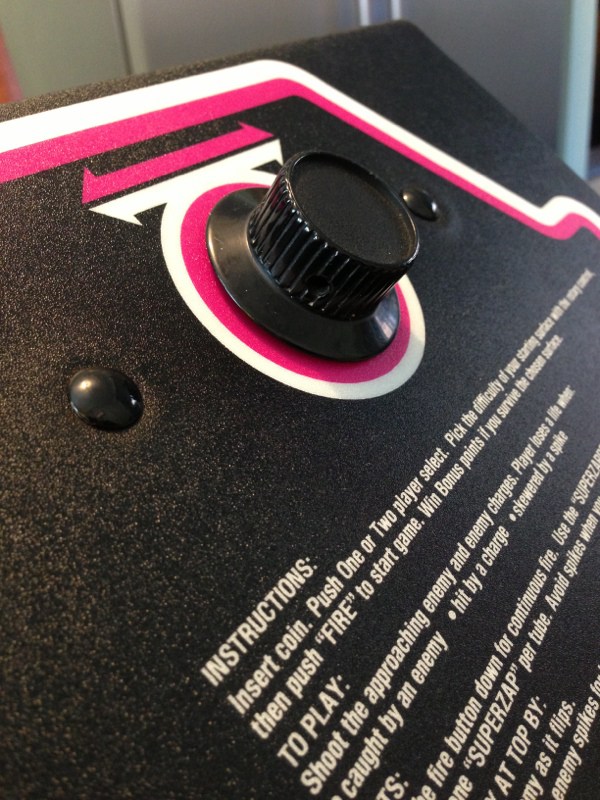

The spinner is silky smooth and silent now. It’s not too loose either, just feels nice and smooth and weighty. Notice the bolts – these were repainted with metallic black paint (I use the Hammerite branded stuff):

96246B06-B344-4B9F-9300-DE51D6C110A8-23948-000002885798A1A1

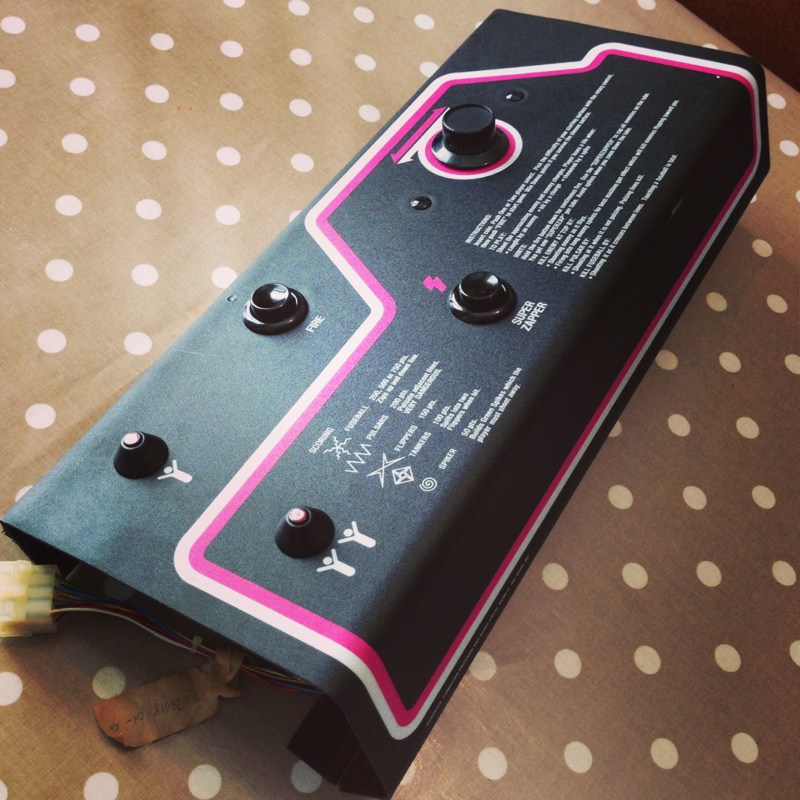

And here she is – good as new:

E9B6B989-9FAF-48C3-A583-0B978D8885F9-23948-000002884574DD17

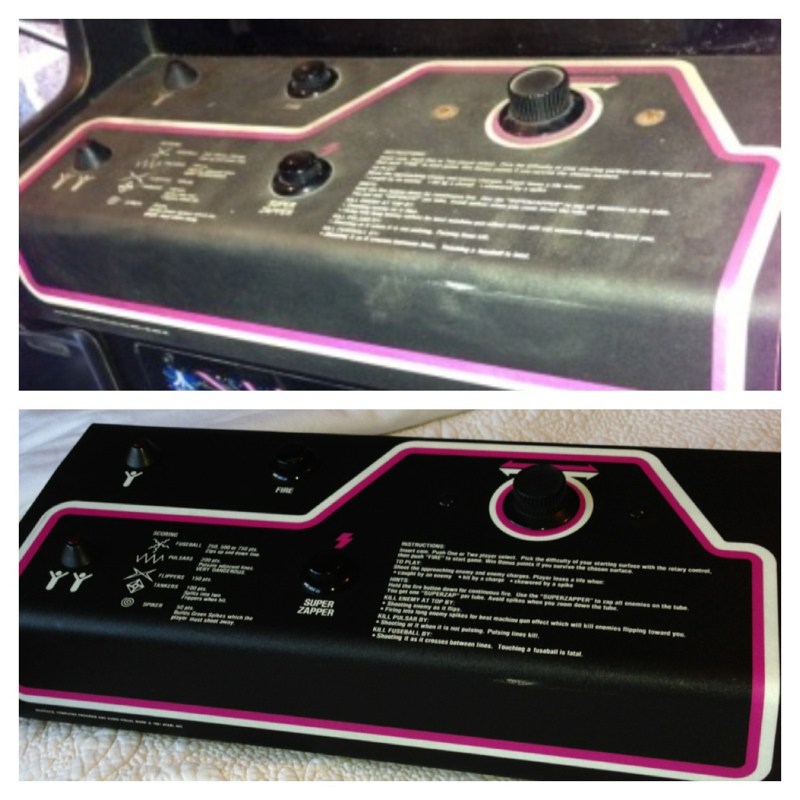

Before and after pic:

2EDD14F2-0A0D-4CC9-A70C-031D3536A154-23948-0000028F1382E94E

Very pleased with that – it’s come up nicely. A few more jobs followed. Repainting the power brick that sits at the bottom of the cab – this essentially sorts out all the voltages that is sent to the various parts of the cabinet – the monitor, the main PCB board, the marquee light etc. It was pretty rusted up as you saw in the previous posts. Here it is being repainted using Hammerite gold paint:

1F562AC6-B884-4646-8B46-CD4C8A018118-4343-00000076C10916FE

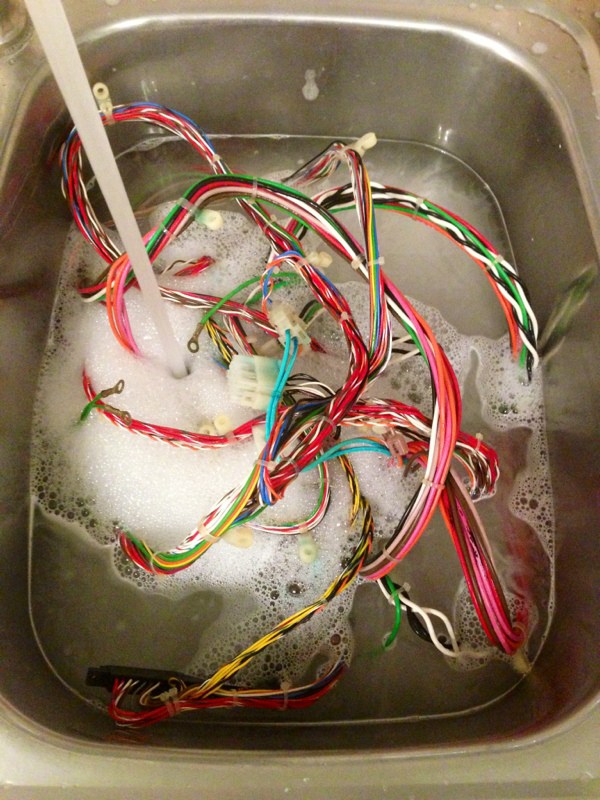

Next up, cleaning the wiring loom. Two ways of doing this; either give it a wipe with a damp cloth, or do it properly and chuck it in the kitchen sink. I go for the latter option:

2F8187E5-145D-410A-9B30-ABDA9A68E019-4343-00000076D9D966A9

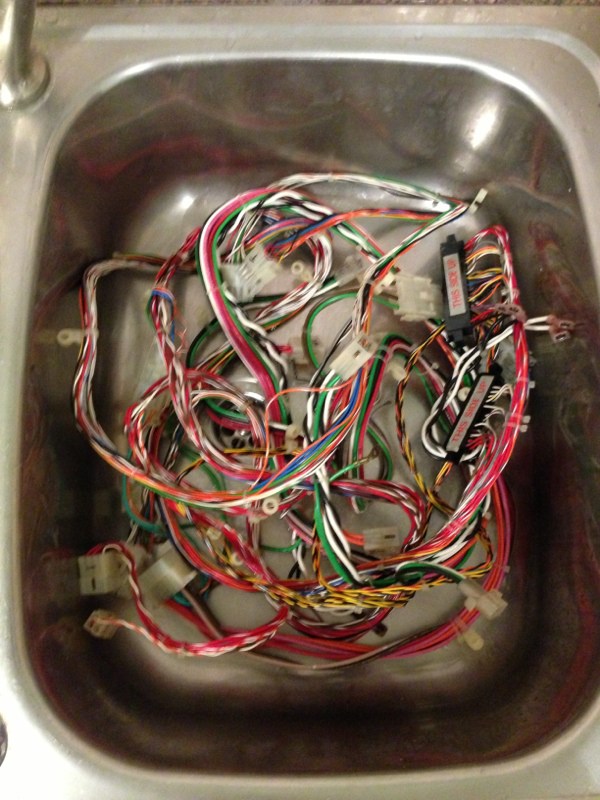

Voila!

E36ED9F8-3FA9-4944-9031-E584FC110A14-4343-00000076DFD66D0E

So we are in good shape to move on to the rest of the cab. More to come in part 4!

Tony
