Atari Centipede Upright Restoration 4

So we should now be in the home straight on the restoration of this Atari Centipede. What started as a “light restore” has turned into quite the job. I under-estimated just how much work I had to do to get this cabinet up and running and looking decent again.

But things are coming together, and all that’s left are a few cosmetic jobs to get the cab complete.

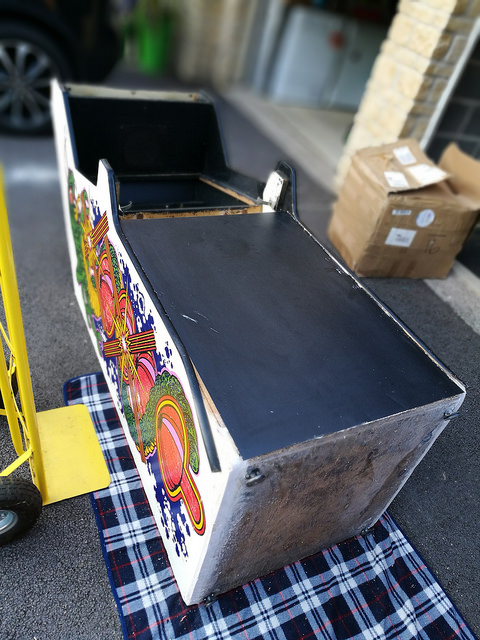

So I left part 3 with the replacement black vinyl placed on the front of the cab, weighted down to let the glue set. Everything worked out OK; so with the glue dry, there’s something missing. A hole for the coin door!

28488410994_f83cde316e_z

Sounds easy, but it is a delicate job as this vinyl stuff is very brittle. One wrong move and it can split very easily. I used a Stanley knife with a new sharp blade and carefully cut round the hole, then finished off smooth with a rasp:

28800808380_248fa57181_z(1)

Note the bits of white glue that have squeezed up along the sides. I’ve tested an area and it looks pretty easy to remove so I’m not worried about that at this stage.

Next up was putting some proper feet on the base of the cab, and some minor Bondo work to the bottom front edge behind the vinyl:

29087075025_69c39577ab_z

I’ve left that to dry for a day, and we’ll sand smooth tomorrow. While that’s doing its thing, I made a replacement cardboard bezel. The old one was rotten and falling apart. I cleaned up the old one and used it as a template:

28471225873_d730e9d043_z

Draw round the old pieces and cut round the shape with sharp scissors. Then grab a long ruler and a plastic scorer to mark the required folds in the cardboard. Here’s the finished product. Old one at the top, new one at the bottom:

29089369485_89f6afa783_z

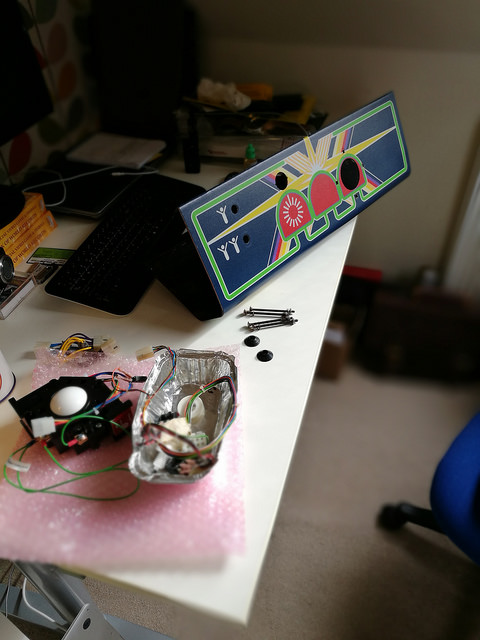

Control panel next. You’ll remember this was stripped and given a deep clean. The hardware and loom was also scrubbed clean and it’s now time to repopulate our nice looking panel:

28488398274_caaa683df0_z

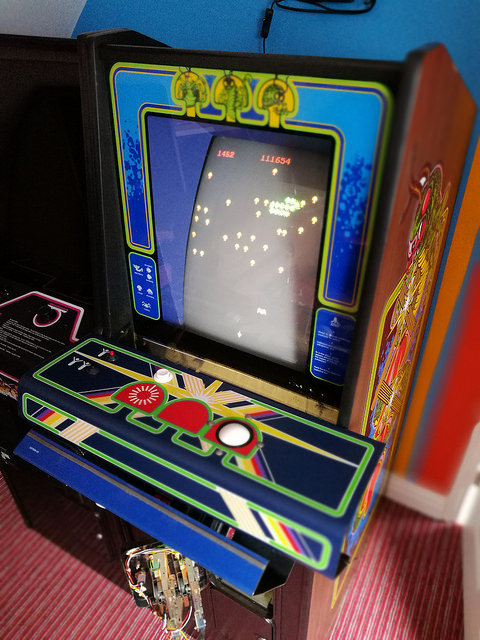

Once complete, a quick test in my Centipede cabaret to check everything is wired up and working correctly:

28488347624_c0fddcda4a_z

Thumbs up – trackball is silky smooth and fire button and start buttons work and light up where they should. The panel came up really nice. Here’s a before and after shot:

29110263335_e45c781536_z

More jobs are calling on the main cabinet. Where we’ve Bondo’d the base of the cab, we need to re-cut the channel that holds the t-molding in place. Sensible people would have a router to do this, but not being very sensible, I used a cutter bit on my drill. It worked out fine:

28677859633_041f71d359_z

Confession: I killed my Dremel – it simply couldn’t hack it. Whoops. So it looks worse than it is – that picture does it no favours! This edge will be covered by the new t-molding so it doesn’t need to be perfect.

Next, I wanted to tidy up the edges next to the new vinyl front – it was pretty tatty. I smoothed the edge out – removing the loose wood and glue particles:

29010512530_9bb303906f_z

Once that’s vacuumed away. I used masking tape to protect the new vinyl, and painted the edge with blackboard paint:

29264847656_d6560453d6_z

Job done. Great stuff Blackboard paint – really works well, and covers a multitude of sins on many a cab.

From here, a photo speaks a thousand words, so I’m going to summarise how I spent my Monday afternoon in the sun:

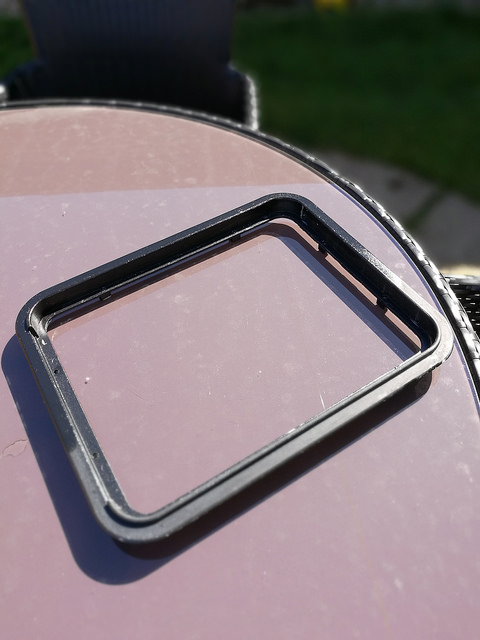

Clean up coin door surround. (Top-tip: Baby Oil!):

29316378325_045b0a8eb5_z

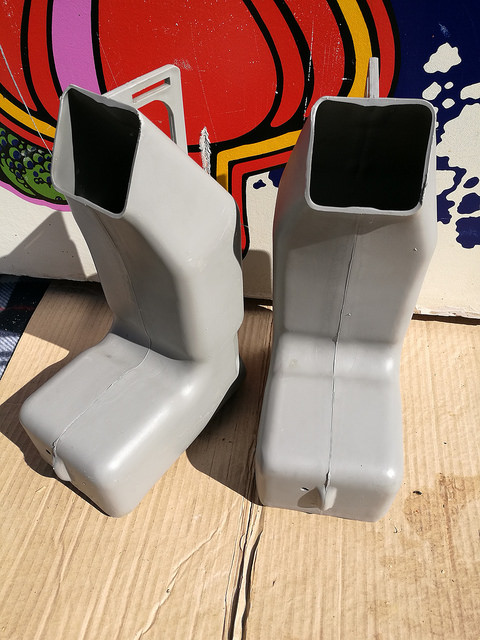

These are cool. No they’re not the cardboard things you pee in when you’re in hospital, they are the original coin chutes! They cleaned up nice:

29316321905_82462dc3ea_z

The artwork was peeling slightly at the rear and it was really annoying me. Grabbed some PVA glue, worked it in there along the rough edge, then clamped shut using a wood brace. Another top tip – spray a thin coat of WD-40 along the leading edge of the brace – stops it sticking to the glue when you clamp it down. Left this drying for 3 hours while I got on with everything else:

29237728171_e0b1ce2847_z

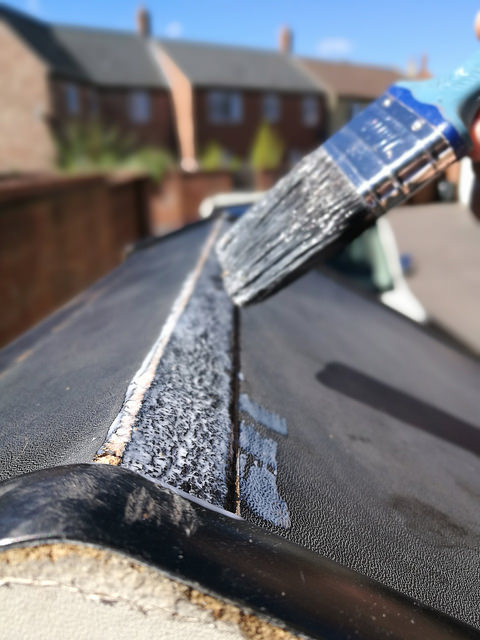

With the PVA glue out, I worked some into the exposed areas of wood where it was flaking slightly. I’m prepping the back and top of the cab for blackboard paint, which will tidy everything up massively, and brighten up our dull vinyl:

29237747671_8ca8c182d5_z

Coin door is in nice shape, but the coin return flaps and hinge are rusted:

28695704803_59d08144b0_z

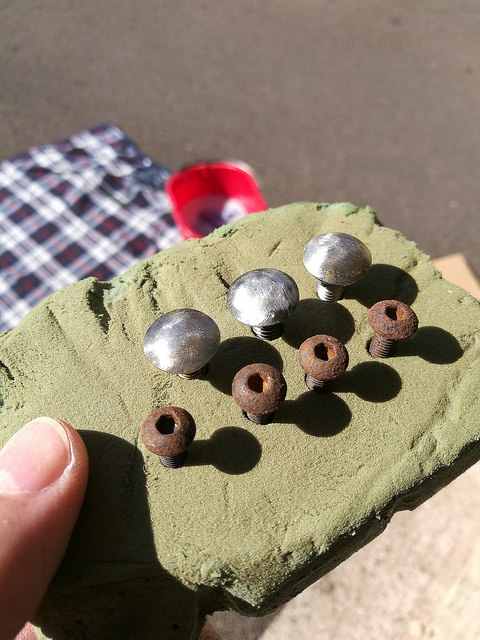

Rather than take the door apart (OK, OK, I couldn’t undo the screws), I gave each a quick sand, masked everything off and grabbed the Hammerite spray paint. Then I had a thought – why not tidy up the rusty bolt heads while I’m there?

29028398070_1457e0df41_z

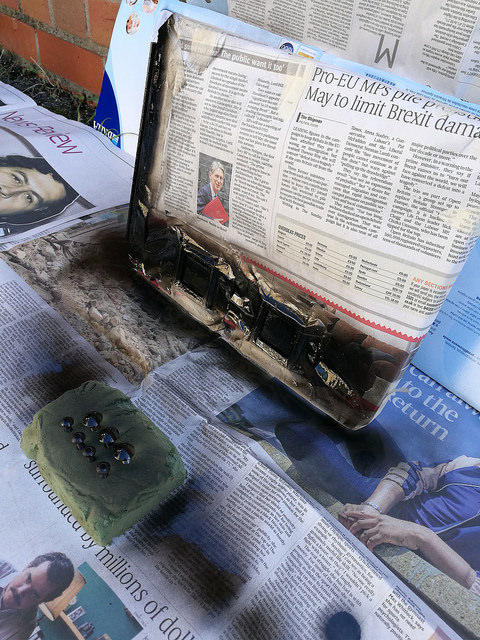

I know. I know. But humour me for a minute:

29237642401_c190acb92d_z29282680106_32f64efc0f_z

That’s four coats later. Small details, but worth doing. Leave overnight to dry.

More painting! This is the rear wooden door half done. You can see the tatty condition it was in on the right:

29323824035_cfe03c8340_z

Just one coat needed. Came out well (the weird streaks are the sun reflecting off the car):

29036086630_5499a1a940_z

Next up the cab itself. I was in a rush to get this done before it got dark, so didn’t snap progress, but the top, back and t-molding groove were all painted with black blackboard paint. Here’s how it turned out, left in the garage to dry out overnight:

28700860134_a67798b80b_z

So I had assumed that this being Part 4, we’d get to the finish line! But I’ve gone mad with photos, as I wanted to document everything for the blog. So one more part to go, where we put everything back together and switch on! Stay tuned for the conclusion of this Centipede restore!

See you next week.



Tony
