It’s always good to complete a restoration. This Atari Battlezone cabaret is no exception. This cabinet was part of the Pete Davies collection, that I picked up last year. As one of 60-odd cabinets rescued from his house in Scotland, it has been very satisfying to get the machine up and running again in his memory.

You may recall in part 5, the cab was now in the house, had some scuffs touched up and I was making a start in rebuilding the hardware. So here we go then, into the final stretch.

There was one final job to do in the garage – detailing the coin door flaps, screws and control panel carriage bolts. They had rusted quite badly, so I gave the heads a rub with sandpaper and got to work with the Hammerite spray:

36016290484_1a97f2015c_z
This might seem rather over the top, but the small flaws would really stand out as the rest of the cab is now like new

I left that lot to dry overnight and they look like new. Back into the house, and here’s all the bits that need to go back into the cab:

36680038202_b5337991a2_z
Here’s what an arcade cabinet looks like in bits! Lots to do…

There’s a few hours work here, so here goes:

36016300764_0b2bbd236b_z
Screw the coin door frame back onto the front of the cab
36680026052_c2ef8e0c6c_z
Repopulate the wiring loom. Thankfully, I took lots of pictures when I removed everything. So getting the loom back in the right place was plain sailing
36850673685_34c72bf155_z

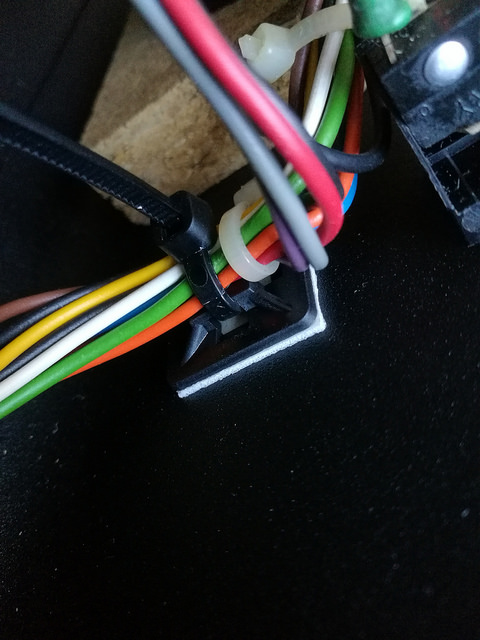

These are new cable ties and holders to secure the wiring loom in place

Then back downstairs for a couple of jobs:

36978987585_1b195d110d_z

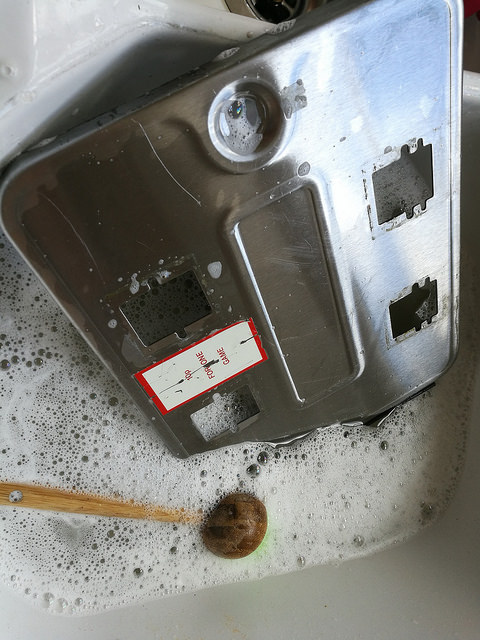

Gave the coin door a soak. That sticker was a bitch to get off! Then polished with baby oil, and rebuilt
36016293274_2e157b88c2_z
Got a new back door schematic sheet printed off and staple gunned onto the inside of the back door

Artwork next. So the story behind this is pretty involved. I wanted to get the original side art on this cab. It’s been available for some time, as the original screens from Atari turned up a while back. You can buy this original stuff from the USA, but at well over $100 plus shipping, plus customs charges to get it here, it comes at a heavy price.

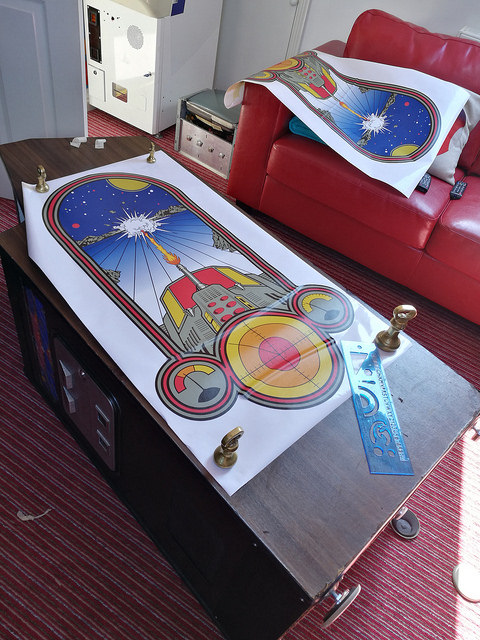

I was lucky and managed to find someone who made a good approximation of it for me. I got it over to a specialist printers, who did a great job. This is printed on thick 3M vinyl, then diamond lacquered to protect it, and prevent fading over time:

36978987445_4b72621559_z

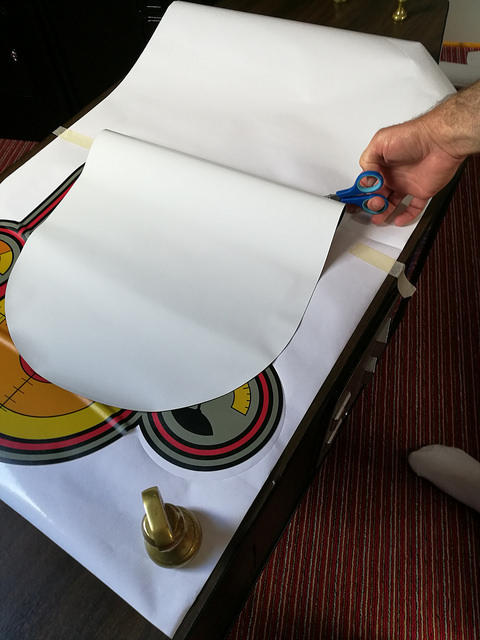

There’s a single picture on the web of a Battlezone cabaret with the original artwork. Using that as a guide, I was able to accurately position the vinyl
36143476594_4b8337d2b6_z
Once I was happy, it was time to apply it
36978983925_d11a1bcd46_z

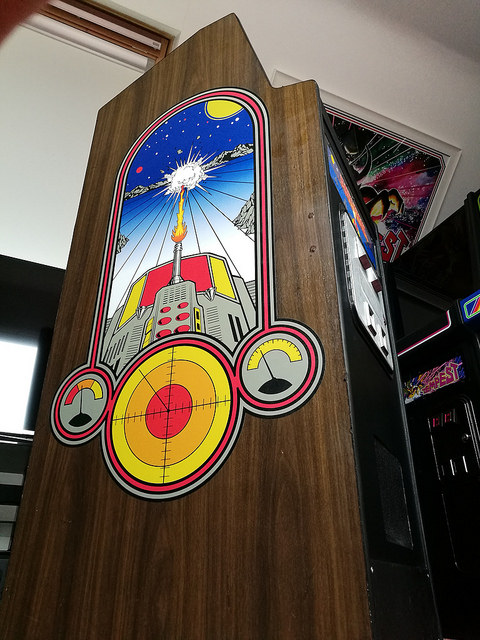

it went on really nicely with no issues. Great quality this stuff
36826096452_1cb7004039_z
Big improvement!

I got the monitor ready, and applied the relevant red and green gels. Then went through a flight check, before switching things on:

36143477754_abe61477ee_z
This was a problem I discovered. My loom was built in Ireland, but the power supply I bought from the US after realising the cab was missing the original, and guess what? The plugs didn’t match! I found the correct socket on eBay and swapped the pins over. Delayed things by a day!
36188923473_e917062f8a_z

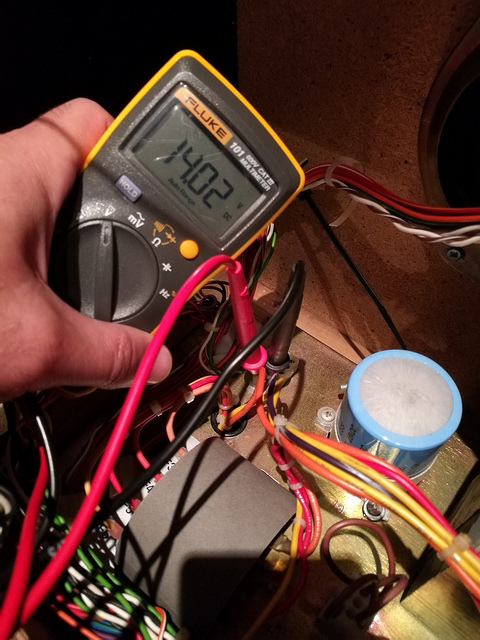

Measuring voltages at the power brick. Everything checked out perfectly

So here you go. The finished result:

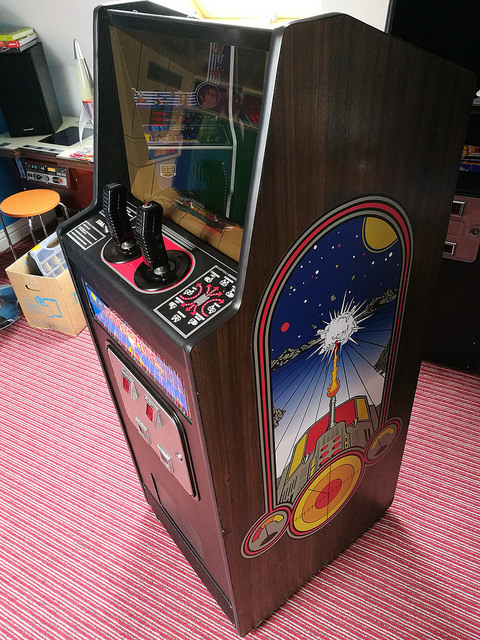

36809646466_6b9b4b800f_z
The artwork really does make a difference to these wood grain Atari cabarets
36809637876_61b545aa2e_z

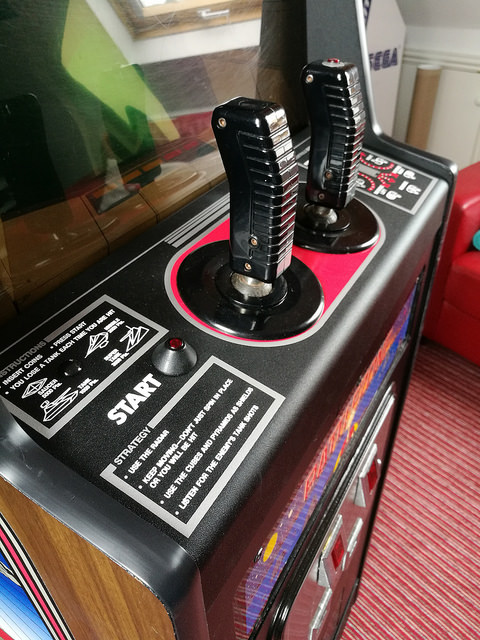

The new control panel pops with colour and detail now
36826096912_ac986da309_z
Here’s the back. That’s a new back door made by my buddy Victor (thanks again Vic!)
36997591135_1975b1c781_z
And of course, the final touch of the Pete Davies sticker on the back (I’ve since touched up the top of the door there with black paint)

Here’s a couple of before/after pics:

28425954414_67f5eeb4eb_z
Control panel before
36826102212_bd98bfed86_z
Control Panel after
29046450615_a14fa3e587_z

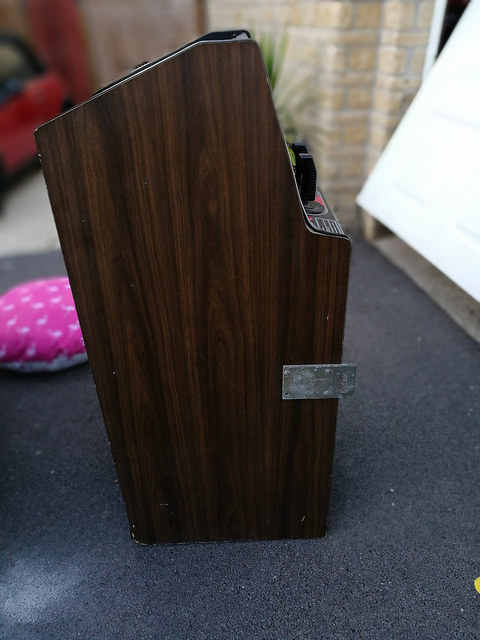

Left hand side before
36997597585_61b7117f7e_z

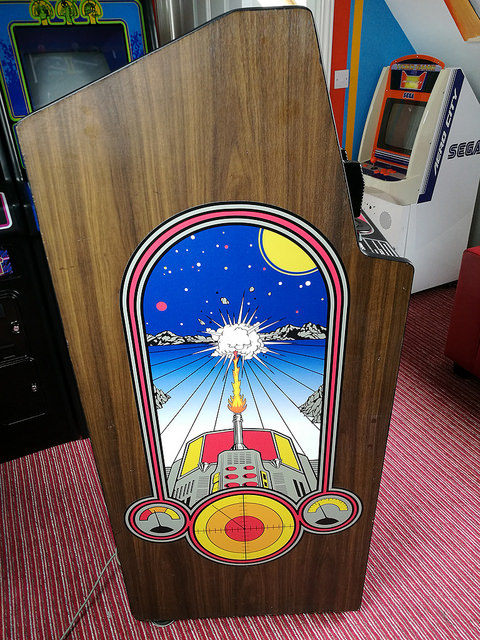

Left hand side after
28941250192_9395fa84d0_z
Battlezone cabaret as found
36809646806_f162c26bf1_z
Battlezone cabaret after restoration

So there you go. I reckon that’s about 20 hours work all in. Everything is documented from start to finish, so if you missed the earlier work, click here. I’m very pleased with the result. And even better, I managed to squeeze it into the arcade room quite nicely.

The PCBs are currently with James at Retro Games Party for repair. I would imagine by the time I post this, the boards will be back and I can show you a picture or two of the game in action. I’ll update this article once they’re back in and working.

Thanks for reading – do share this article using the social media buttons below. If you like what you see, check out my other restorations using the menu at the top of this page.

It has been an honour to work on Pete’s rusty old Battlezone cabinet, and getting back into working shape. It’s going to get plenty of play for years to come.

Keep your eyes peeled for more arcade restorations here on the blog. Remember to check out the archives above to read more.

See you next week.

Tony

In memory of Pete “Invadar” Davies: 1938-2015.
